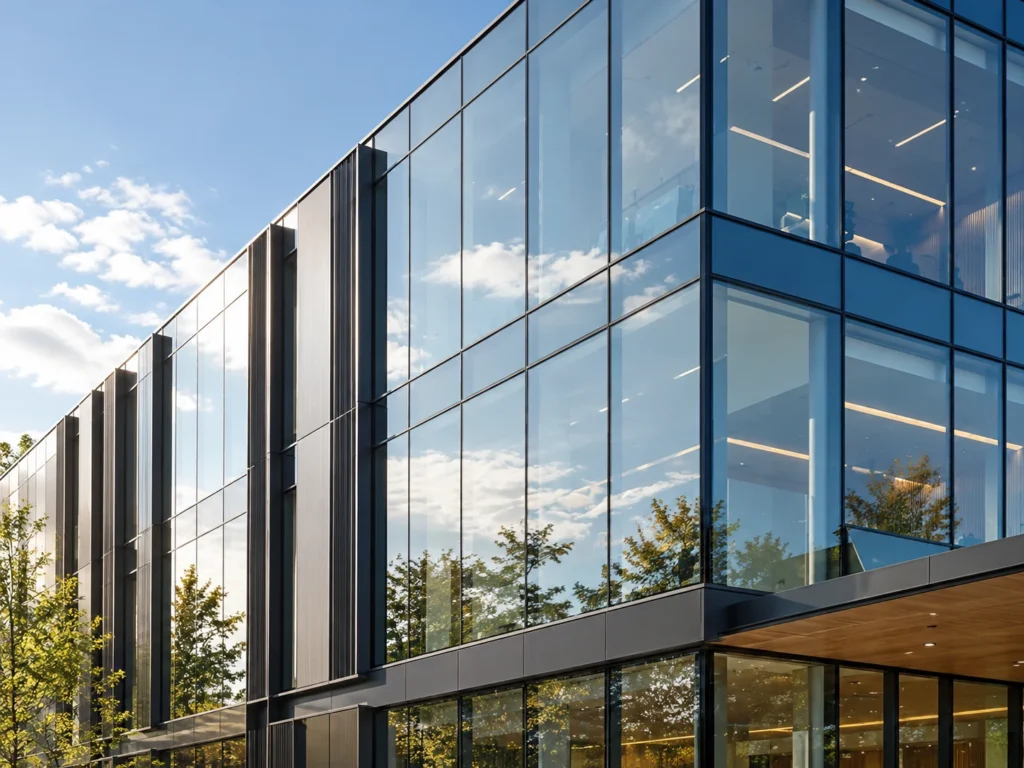

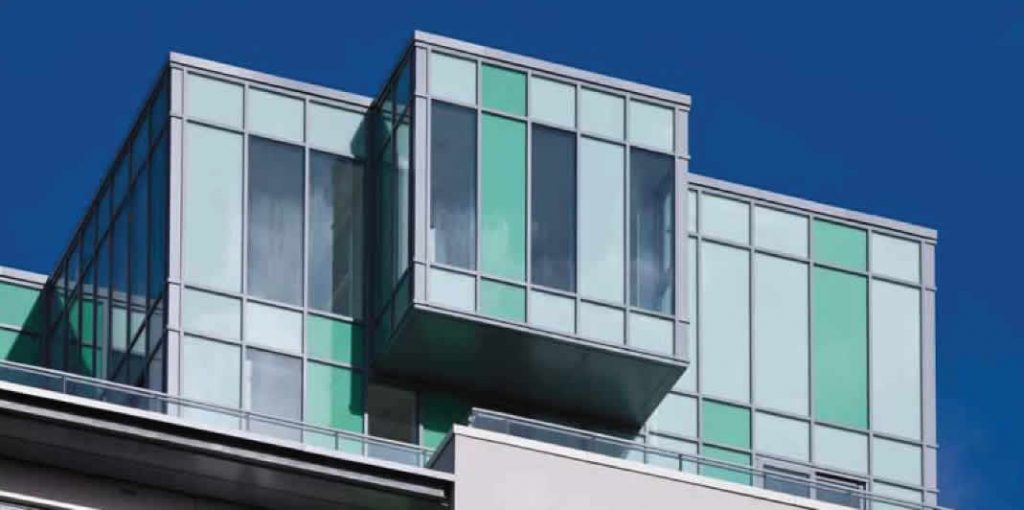

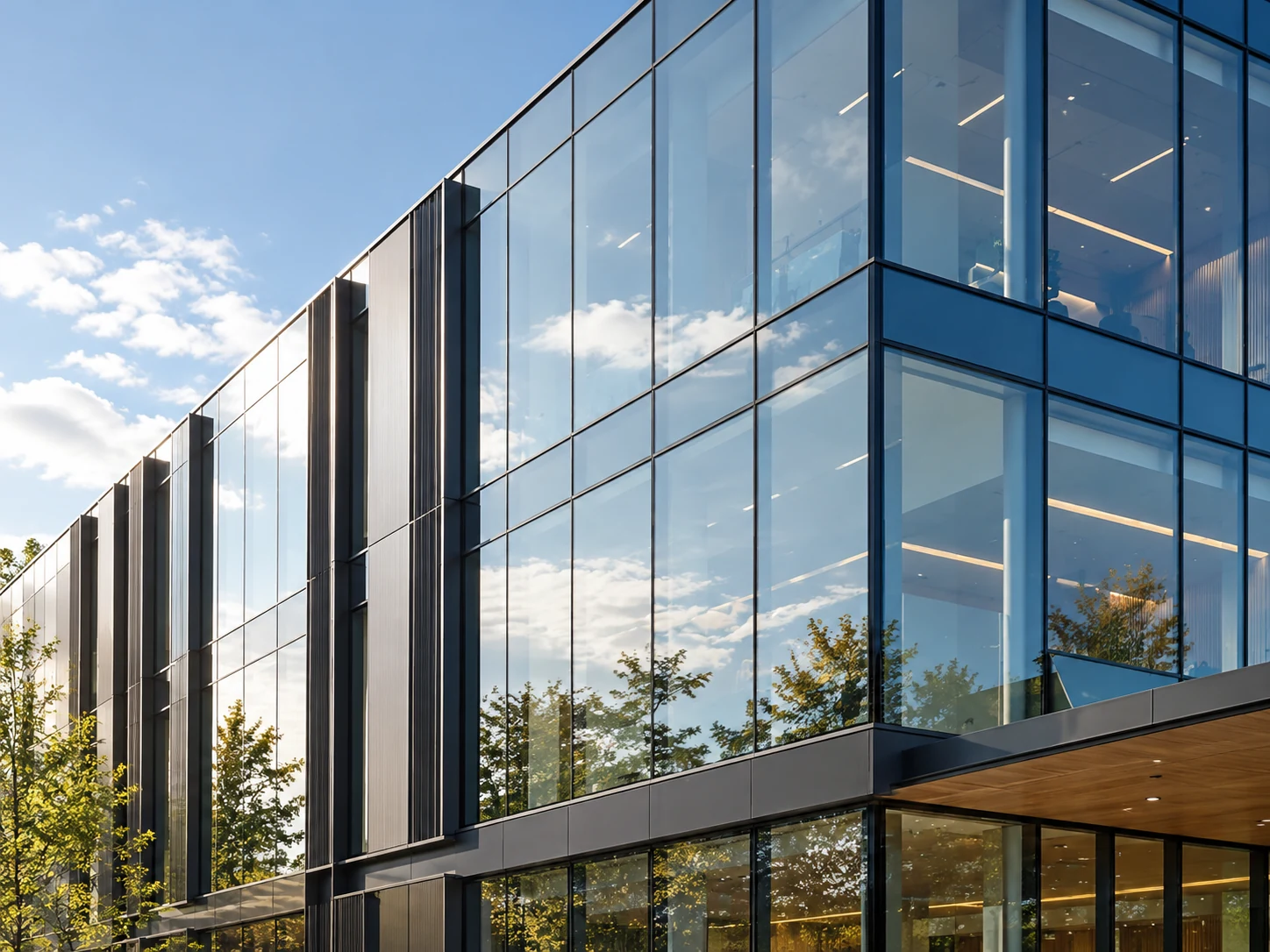

SL52 Curtain Walling System

Designed to offer a flexible, high performance solution, the SL52 Curtain Walling System is a capped solution that enables specifiers to create impressive facades that not only enhance the aesthetics of a building but also provide the functionality and performance required to meet and exceed current standards.

Design Features

52mm capped high rise curtain walling system
Glass loads of up to 400kg
Can be faceted, curved or angled
Various drainage methods including mullion and zonal
Wide range of face caps to meet your design requirements
Fully integrated vent options including POV, TBT, Top Humg, Side Hung, Fixed Light
Large range of box sizes to optimise small to large spans of glazing
CWCT certified

Options

Standard, Sleek-Look and Alu-Steel framing options available
Glazing and infill range form 6mm-50mm
Fully integrates with all AluK window and door ranges
Available in single or dual colour option, polyester powder coating and anodised finishes

Configurations

Flexible design allows SL52 to be tailored to suit your project needs
Multiple construction options including traditional shearblock T-connectors, front loaded transoms with sprung T-connectors and special profiles that achieve semi-unitised off site construction
Concealed mullion drainage options and visible zonal drainage option
Varying mullion depths allowing a wide range of achievable lxx values
Wide range of mullion depths ensures maximum structual optimisation

Flexible design SL52

SL52 Curtain Wall Technical Specifications

The SL52 is thermally broken and has been designed to offer flexibility in specification and installation. A complete range of configurations are available to meet the needs of your project’s aesthetics and performace. These include a wide selection of cap designs and the incorporation of fixed lights, opening vents and an extensive range of colours. The system is available in any RAL colour and can be dual colour (inside and out) if required. Anodised finishes are also available with marine grade guarantees available on request.

CAD cross sections and thermal profiles
