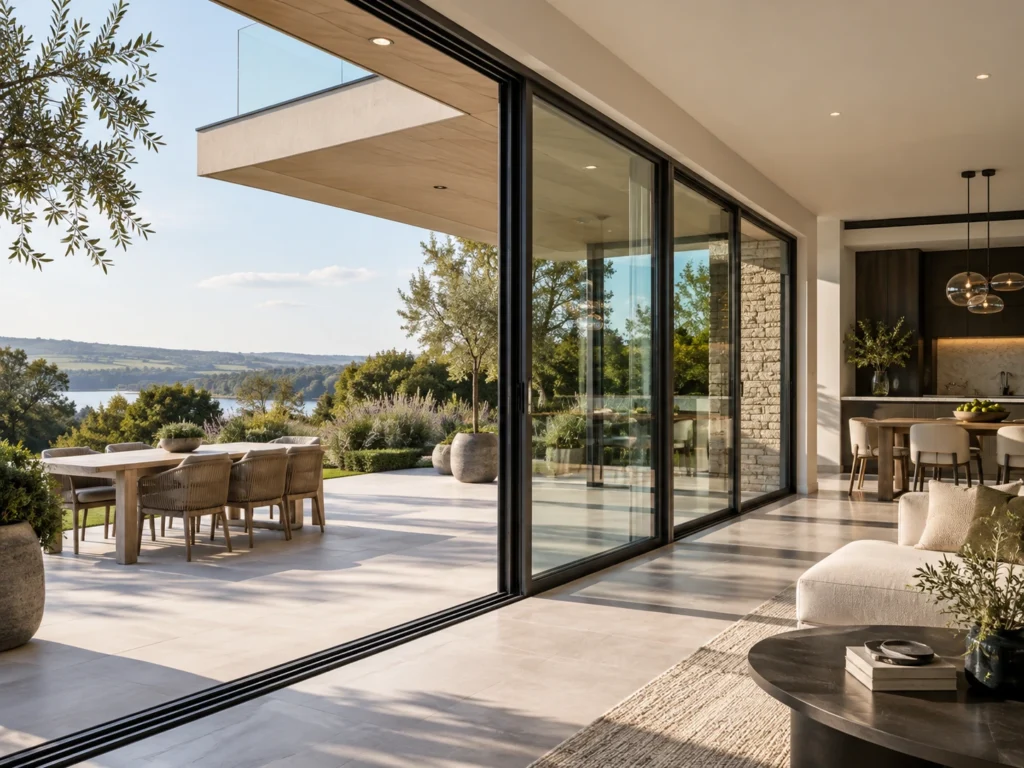

BSC94 Inline Sliding Door

Combining high performance with stunning design, our sliding aluminium door systems provide a versatile solution for any architectural project. Manufactured to the highest UK standards, this multi-configuration inline system offers outstanding thermal performance and a wide range of customisable options.

Design features

• Accepts 20 – 31mm double glazing
• Max 400kg panel weight
• Certified PAS 24
• Anti bi-metal polyamide strip to allow for varying expansion rates

Options

• Available as Lift & Slide
• Slimmer sightline of 45mm available
• Multiple sliding configurations
• Mono, Dual or Tri rail options
• Available in single and dual colour, anodised finishes also available
• Range of hardware and security features

Specifications

Rooms flooded with light

Thermally insulated Aluminium Sliding and Lift-and-Slide System – connects the outstanding qualities of a robust vent frame with a narrow face width for rooms flooded with light.

• Water tightness up to class 9A
• Single, double and triple track outer frames
• Excellent sound insulation
• Glazing thickness 8-32mm
• Wide choice of colours

Cor vision Sliding System with thermal break

An avant-garde design of a thermally broken sliding system that permits maximum luminosity with the minimum amount of seen aluminium profile section. An elegance in design that looks to cover great light spaces with minimum frame fragments of between 9-14{c7d3f54dc1ae1b37a70f4bf54b84e8508b0255948074da0b7c32a08584b3e9b5} of the total surface. It shows seen centre junction sections of only 20mm, in the lateral junction at 77mm and the top/bottom junctions at 57mm.

Possibility of inlayiong the bottom, yop and lateral frames.

Possibility of sash meetings at the 90° corner without a mullion.

In its monochannel version, comprising of fixed and sash, the hidden rail is found in the fixed area.

It incorporates the new type of GALANDAGE that is designed to allow the possibility of an integral opening in the space to completely conceal the sashes in the building curtain wall chamber. In this way a 100{c7d3f54dc1ae1b37a70f4bf54b84e8508b0255948074da0b7c32a08584b3e9b5} opening surface can be achieved.

This GALANDAGE option is made up of a single and dual channel rail which allows for a single or double sash concealed balcony doors.

This presents a new type of frame for 1, 2 or 3 rails that allows the incorporation of a stainless stell rail that affords increased sliding smoothness, an increase in laoding support for thebearings (up to 320kg/sash) and increased durability.

A system with traditional fitting procedures with perimetral frame and sashes that allows the sash to be dismantled in case of glass breakage, damage to the aluminium profile etc. It incorporates a rod operated mulipoint lock.

Cor-Vision Plus Sliding System with thermal break

Minimalistic sliding system especially suitable for large dimensions, allowing maximum luminosity with minimum visible section of aluminium and the possibility to cover great openings with a glass surface of 94{c7d3f54dc1ae1b37a70f4bf54b84e8508b0255948074da0b7c32a08584b3e9b5}.

It’s extraordinary glazing capacity allows to place glasses of up to 54mm thickness which guarantees the best acoustic and thermal peformance in a system with these characteristics.

It is available in configurations of fixed and sash, 2 and 4 sashes, and the maximum dimensions are 4,000mm/sash width/height.

It has a visible section of just 25mm and the possibility to totally inlay the bottom, lateral and top frames.

It provides the possibility of a motorized opening for weights up to 700kg and a manual opening for up to 44kg. Additionally, it allows multipoint lock systems by operating rod, with or without key.

The rollers are placed in the frame and the sashes count with a stainless steel reinforced channel which makes the sliding movement smnoother.

This system has a traditional procedure for assembling with a perimeter frame, 45°cut; and straight cut in the sashes, which allows disassembling of the sash in case of breakages to the glass or imperfections in the aluminium profile.
